How to Charge the Batteries in your Motorized Mobility Scooter

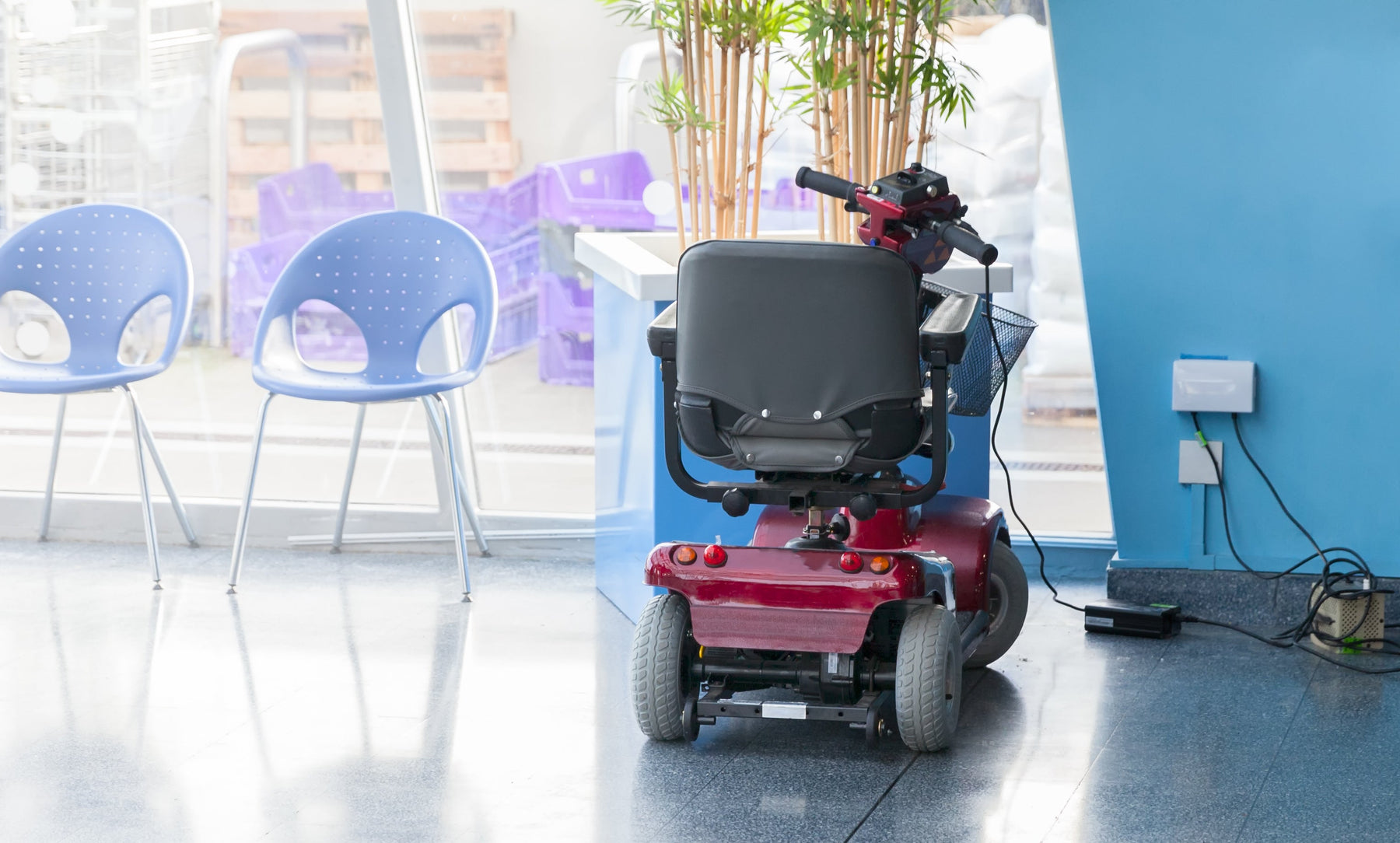

To charge a mobility scooter battery, turn the scooter completely off, connect the charger to the scooter first and then to the wall outlet, and leave it until the indicator light turns green. That usually takes 6 to 12 hours. When it is finished, unplug at the wall first, then at the scooter. Almost every mobility scooter runs on sealed lead acid batteries, which want to be charged to full after every use and should never be stored empty.
Mobility scooter. Electric wheelchair. Power scooter. Electric cart. It goes by several names, but the job is the same: helping you get around when walking is difficult. And nothing undermines that faster than a battery you cannot trust. The good news is that sealed lead acid batteries are predictable. They reward a simple, consistent routine and they punish a few specific habits. This guide covers the correct charging procedure, how long a charge actually takes, how often to charge, what the charger's indicator light is telling you when something is wrong, and how to handle winter storage.
AJC manufactures the sealed lead acid batteries in our mobility scooter battery collection as direct OEM fit replacements, and they ship factory activated and fully charged. That last detail changes the first-use advice slightly, and we cover it below. For the replacement procedure itself, see our mobility scooter battery replacement guide. Your scooter's owner manual is always the final authority, since specifics vary by model.
In This Guide
- Which Kind of Scooter Do You Have?
- How Do You Charge a Mobility Scooter Battery?
- How Long Does It Take to Charge a Mobility Scooter Battery?
- How Often Should You Charge Your Mobility Scooter Battery?
- Can You Overcharge a Battery or Leave It Plugged In Overnight?
- How Is Charging a Lithium Scooter Battery Different?
- What If Your Mobility Scooter Battery Will Not Charge?
- Can You Charge Without the Original Charger?
- How Should You Charge and Store Over Winter?
- Why Is My Scooter Battery Draining Faster Than It Used To?
- When Charging Will Not Fix It
- Frequently Asked Questions
Is Your Scooter 12V or 24V?
Before anything else, know how your scooter is wired, because it determines which charger you need and it explains a failure mode covered later in this guide.
Smaller travel and folding scooters typically run a single 12V sealed lead acid battery. Most mid size and full size mobility scooters and power wheelchairs run two 12V batteries wired in series to make 24V, charged through one port. The label on the existing battery and the sticker in the battery compartment will confirm both the voltage and the amp hour rating.
This matters for two practical reasons. A 24V pack needs a 24V charger, and a 12V charger simply will not fill it. And because the two batteries in a 24V pack are wired in series, they age as a unit, which is why they are replaced as a matched pair rather than one at a time. More on that below.
How Do You Charge a Mobility Scooter Battery?
Nine steps, and the order matters more than most people expect. Each one below includes the reason behind it.
- Turn the scooter completely off. Charging a scooter that is still powered on can send current where it is not wanted, and on some models it stops the charger from recognizing the battery at all.
- Use the correct charger. Use the charger supplied with your scooter, or an official replacement recommended by the manufacturer. It has to match the battery's voltage and suit its chemistry. The wrong charger can damage the battery, cut its life short, or create a fire risk.
- Connect to the scooter first. Find the charging port, either on the battery pack or on the scooter frame, and seat the connector firmly. Connecting at the scooter before the wall means you are never handling a live connector.
- Then connect to the wall outlet. Plug the charger's power cord into a standard outlet. Skip extension cords and power strips where you can, since a loose connection there can interrupt the charge partway through with no obvious sign.
- Check the indicator light. The charger LED should come on, usually red or amber, confirming the battery is genuinely accepting a charge. If nothing lights up, stop and work through the troubleshooting table below rather than leaving it plugged in.
- Allow enough time. A full charge generally takes 6 to 12 hours depending on how far down the battery went. Overnight is the simplest way to be certain.
- Stop when the light turns green. Green means the cycle is complete. Pride Mobility advises disconnecting once the battery is full, and after 24 hours at the very most, even on a smart charger.
- Disconnect at the wall first, then at the scooter. Unplugging from the outlet before unplugging from the scooter means you never break the connection while current is flowing, which protects the connector pins and the charger's electronics from arcing.
- Test before you rely on it. Turn the scooter on and take a short run somewhere safe before heading out. A battery that reached green but drops voltage under load is telling you something, and it is better to find that out in your hallway than three blocks from home.
Charge in a room between 50 and 86 degrees Fahrenheit (10 to 30 C) when you can. Pride Mobility identifies that as the ideal window, and charging a battery that is very cold or very hot is both slower and harder on the cells. Our SLA battery care guide covers the wider maintenance picture.
How Long Does It Take to Charge a Mobility Scooter Battery?
Most mobility scooter batteries take 6 to 12 hours to reach a full charge, with 8 to 10 hours typical for a 24V sealed lead acid pack run down to about a quarter of its capacity. Windsors Mobility puts the common range at 6 to 8 hours, stretching to 12 hours for a heavily drained battery, and 1800Wheelchair cites 8 to 12 hours for a full sealed lead acid charge.
| Situation | Typical charge time |
|---|---|
| Routine charge after light use | 4 to 6 hours |
| Routine charge after a full day out | 6 to 8 hours |
| Battery run down to roughly a quarter capacity | 8 to 12 hours |
| Top-off charge during storage | 8 to 12 hours |
Treat these as general reference figures. Your manual is the final word, because a compact travel scooter and a full size unit have genuinely different requirements.
One point specific to AJC batteries: ours arrive factory activated and fully charged, so a brand new AJC battery does not need a long initial conditioning charge before its first ride the way a dry-shipped battery would. Top it off if it has been in the box a while, then ride. Do expect any new sealed lead acid battery to need 10 to 20 charge cycles before it settles at its full rated capacity, per 1800Wheelchair, so slightly short range in the first week or two is normal and improves on its own.
How Often Should You Charge Your Mobility Scooter Battery?
More often than most people think. Sealed lead acid batteries have no charge memory, and they are happiest sitting at full. What damages them is being left partly discharged, because that is when sulfation forms on the plates and permanently takes capacity away.
Match the routine to how you use the scooter:
- Daily use: charge to full every night, no matter how short the trip was.
- Occasional use: charge after each ride, rather than waiting until the next outing.
- Stored or not in use: put it on a full charge at least every two weeks for 8 to 12 hours, which is Pride Mobility's guidance for sealed lead acid.
- New battery: an AJC battery ships charged and ready to install, so simply top it off and go.
Charge as soon as you notice power loss. If the scooter is slower than usual, struggling on a slope it used to manage, or the gauge is in the red, that is the battery asking for a charge rather than something to ride out. Repeatedly running a sealed lead acid battery flat is one of the fastest ways to shorten its life. For the chemistry behind all of this, see our guide to charging sealed lead acid batteries.
Can You Overcharge a Mobility Scooter Battery or Leave It Plugged In Overnight?
Generally no, and yes. With the smart charger that ships with nearly every modern mobility scooter, leaving the battery on charge overnight is safe. These chargers watch voltage and taper to a maintenance trickle once the battery is full, then top it off only when they sense the charge slipping. Overnight charging is the standard recommendation precisely because it is difficult to get wrong.
The risk comes from three specific situations. An older or basic charger with no automatic shutoff will keep pushing current into a full battery, which overheats it and vents electrolyte you cannot replace. A charger that does not match your battery's voltage or chemistry can overcharge even if it is nominally a smart charger. And leaving any charger connected for weeks rather than hours is a habit worth breaking. Pride Mobility's guidance is to disconnect once the battery is full, within 24 hours at the outside.
If you are not sure whether your charger shuts off automatically, check the manual or look for the words smart, automatic, or three stage on the label. If it does not, set an alarm.
How Is Charging a Lithium Scooter Battery Different?
Substantially, and it is worth knowing because advice written for one chemistry can damage the other. The overwhelming majority of mobility scooters use sealed lead acid, but some newer travel and folding models ship with lithium packs. Lead acid wants to be full and topped off. Lithium prefers the middle of its range and dislikes heat.
| Charging habit | Sealed lead acid (SLA/AGM) | Lithium |
|---|---|---|
| Routine charge target | 100 percent, every time | Around 80 percent for daily use |
| Running it flat | Avoid. Causes lasting capacity loss | Avoid full depletion |
| Charge level for storage | Full | Around 40 percent |
| Top-off interval in storage | Every two weeks | Roughly monthly |
| Charging below freezing | Not ideal. Bring it indoors first | Do not. Never charge below 32 F |
Those lithium figures come from Pride Mobility's own battery guidance. If you are weighing the two chemistries more broadly, we compare them in SLA batteries vs lithium batteries. Everything that follows assumes sealed lead acid unless stated otherwise, since that is what the vast majority of mobility scooters and power wheelchairs actually run on, and what AJC manufactures.
What If Your Mobility Scooter Battery Will Not Charge?
Before buying anything, work out whether you are dealing with a dead battery, a dead charger, or simply a bad connection. All three look identical from the seat, and only one of them costs money. The charger's indicator light is the fastest way to tell them apart.
| What the light does | Likely cause | What to do next |
|---|---|---|
| No light at all | No power reaching the charger, a failed charger, or a blown fuse | Test the outlet with something else. Check the charger fuse and inspect the cord, especially where it enters the housing. |
| Stays red or amber and never turns green | Deeply discharged battery, a failing battery that cannot reach full voltage, or a charger not delivering full current | Give it up to 24 hours. If it is still red, disconnect and test the resting voltage. |
| Turns green almost immediately | The charger cannot see the battery, usually a poor connection, or a battery too far gone to accept a charge | Reseat the connector and clean the terminals, then test resting voltage. This is the most commonly misread signal on the list. |
| Flashing or cycling colors | A fault code. Often a bad connection, a mismatched charger, or a temperature outside the safe window | Look the code up in your charger manual, confirm the charger matches your battery, and move the scooter somewhere between 50 and 86 F. |
| Reaches green normally, but the scooter dies quickly | The battery takes a surface charge but has lost real capacity | This is age rather than a charging fault. Time to replace. |
A resting voltage reading settles most of these questions. Leave the scooter off the charger for a few hours, then measure across the terminals. A healthy 12V sealed lead acid battery reads about 12.6 to 12.8 volts at rest, and a healthy 24V pack reads roughly 25.5 to 26.8 volts. Below 23 volts on a 24V pack points to deep discharge or outright failure. Our SLA battery troubleshooting guide has the full voltage reference table, plus how to check for terminal corrosion, swelling, and physical damage, which are the other things worth ruling out before you replace anything.
Can You Charge a Mobility Scooter Battery Without the Original Charger?
You can, but only with a charger that genuinely matches the battery, and several of the workarounds people ask about are unsafe.
A replacement charger has to match three things: the voltage of your battery or pack, the chemistry, and the connector. A 24V pack needs a 24V charger. A 12V charger will not fill a 24V pack, and a 24V charger on a single 12V battery will damage it. Beyond that, look for a smart or three stage charger, since the automatic shutoff is what makes unattended overnight charging safe.
Two things to avoid. Do not use an automotive battery charger on its standard setting. Car chargers are built to push high current into a large starting battery, and that current will overheat and warp a small sealed lead acid mobility battery. Some have a low amperage or motorcycle setting that is closer to appropriate, but the scooter's own charger remains the right tool. And do not try to charge from a car's electrical system or jump from a car battery. The voltage is not controlled in a way the pack can handle, and neither the battery nor the scooter's wiring is built for it.
One thing you do not need to worry about: AJC batteries are sealed, valve regulated AGM units, so there is no fluid to check and nothing to top off. Maintenance free means the only maintenance is charging correctly and keeping the terminals clean.
How Should You Charge and Store the Battery Over Winter or a Long Layoff?
The rule that matters most: never store a sealed lead acid battery empty. Pride Mobility's guidance is to charge to full before any extended storage, and it is the difference between a battery that survives the winter and one that does not. A lead acid battery left discharged for months will sulfate, and that capacity does not come back.
For a layoff of a few weeks or a full season:
- Charge to full before putting it away. Not most of the way. Full.
- Top off every two weeks for 8 to 12 hours if the battery is sealed lead acid. A lithium pack wants roughly a monthly charge and should be stored near 40 percent rather than full.
- Store somewhere with a stable temperature. Steady matters more than warm. An uninsulated garage that swings from freezing to baking is harder on a battery than a consistently cool basement.
- Never charge a lithium pack below 32 degrees Fahrenheit. If it has been sitting somewhere cold, bring it inside and let it reach room temperature first. The same courtesy helps a lead acid battery, though it matters less.
- Disconnect the battery if the scooter will sit for several months, so the electronics do not slowly drain it.
If remembering a fortnightly charge is unrealistic, a quality smart charger left connected will handle it by maintaining voltage automatically. That is a reasonable exception to the disconnect-when-full rule, as long as the charger genuinely has a maintenance mode.
Why Is My Scooter Battery Draining Faster Than It Used To?
A healthy mobility scooter battery should keep you going for hours. When range drops noticeably, the cause is usually one of a handful of things, and several cost nothing to fix. Start with the simple ones.
Common Causes, Cheapest First
- Battery age. Every rechargeable battery loses capacity with each charge cycle. An older battery simply holds less than it did new, which shows up as shrinking range rather than sudden failure.
- Hills and inclines. Climbing asks far more of the motor than flat ground. A route with consistent slopes will cut range substantially, with nothing wrong with the battery.
- Rough surfaces. Grass, gravel, and broken pavement increase rolling resistance. The charge that covers five miles of smooth sidewalk will not cover five miles of lawn.
- Tire pressure. Underinflated pneumatic tires make the motor work considerably harder. The most overlooked cause on this list, and the easiest to fix.
- Rider weight and cargo. More total load means more energy to move it. Shopping bags on the back count.
- Temperature. Cold weather reduces the capacity a battery can actually deliver. Sustained heat does longer term damage to the cells.
- Dragging brakes or worn bearings. Anything creating friction in the drivetrain forces the motor to draw more current. If the scooter feels like it is working harder than it should, it probably is.
- An imbalanced pack. Covered below, and a common and frequently misdiagnosed cause on 24V scooters.
The Weakest Battery Sets the Limit
This is the most useful thing to understand about a 24V mobility scooter or power wheelchair. A 24V pack is not one battery. It is two 12V sealed lead acid batteries wired in series and charged through a single port.
Because they are in series, the same current flows through both batteries. If one has lost capacity, it hits empty first and drags the pack down with it, even though the other still holds charge. It also becomes the bottleneck while charging, so the pack reads full but delivers the range of its weaker half. Range falls off well before either battery looks obviously dead.
This is why the batteries in a 24V pack are replaced as a matched pair rather than one at a time. Pairing a new battery with an older one means the new one is immediately held back by the old one, and the mismatch stresses both. Same age, same capacity, same brand, replaced together. It is also why AJC sells matched pairs for 24V applications.
If range has dropped suddenly and correct charging does not restore it, the battery is the likely answer rather than your routine. Our mobility scooter battery replacement guide covers the swap start to finish.
When Charging Will Not Fix It
Correct charging extends a battery's life considerably, but it cannot reverse age. A mobility scooter battery used daily typically needs replacing every 12 to 18 months, and light or seasonal use can stretch that toward three years. Once a battery reaches green on the charger but the scooter loses power quickly, or resting voltage stays low after a full cycle, no change to your charging habits will bring that capacity back.
At that point, our mobility scooter battery replacement guide covers matching size, voltage, and terminals, and the step by step swap. Recycle the old battery rather than binning it. Most auto parts stores and battery retailers accept them, and AJC Battery offers battery recycling as well.
Frequently Asked Questions
How long should I charge my mobility scooter battery?
Charge until the indicator light turns green, typically 6 to 12 hours. A routine charge after normal use usually takes 6 to 8 hours, while a battery run down to about a quarter of its capacity can take 8 to 12 hours. Disconnect once it is full, and within 24 hours at the most.
Can I leave my mobility scooter on charge all the time?
Overnight charging with the smart charger supplied with your scooter is safe, because it tapers to a maintenance trickle once the battery is full. Leaving it connected indefinitely, for weeks at a time, is not recommended. If your charger is an older model without an automatic shutoff, unplug it as soon as the battery is full.
Do AJC mobility scooter batteries need charging before the first use?
AJC batteries ship factory activated and fully charged, so they are ready to install and ride. If the battery has been sitting in the box for a while, give it a top-off charge first. Expect any new sealed lead acid battery to need 10 to 20 charge cycles before it settles at its full rated capacity, so slightly short range in the first week or two is normal.
How often should I charge it if I only use the scooter occasionally?
Charge after each ride, rather than waiting for the next outing. If the scooter is not being used at all, put it on a full charge at least every two weeks for 8 to 12 hours. Sealed lead acid batteries are damaged by sitting partly discharged, not by frequent charging.
Does a mobility scooter battery charge while you drive it?
No. Unlike a car, a mobility scooter has no onboard charging system that replenishes the battery as you go. All the energy for a trip comes from the charge you put in beforehand, which is why charging after every use matters so much.
Can I use a car battery charger on a mobility scooter battery?
Not on its normal setting. An automotive charger delivers far more current than a small sealed lead acid battery can absorb safely, which overheats it and vents off electrolyte. Some car chargers have a low amperage or motorcycle mode that is closer to appropriate, but the charger designed for your scooter is the correct tool. Never attempt to charge from a car's electrical system.
Why does my charger light turn green right away?
Usually because the charger cannot see the battery. Check that the connector is fully seated and the terminals are clean and tight. The other possibility is a battery so deeply discharged or degraded that it will not accept a charge at all. Test the resting voltage to tell them apart: a healthy 12V battery reads about 12.6 to 12.8 volts, and a healthy 24V pack reads roughly 25.5 to 26.8 volts.
Do I need to check the fluid in a sealed lead acid scooter battery?
No. AJC batteries are sealed, valve regulated AGM units, so there is no fluid to check and nothing to top off. Maintenance free means the only maintenance is charging correctly and keeping the terminals clean and corrosion free.
Consistent, correct charging is the most effective thing you can do for a scooter battery: use the charger built for it, charge after every use, and never leave it sitting empty. Combined with the specific guidance in your owner's manual, that routine is what keeps a mobility aid dependable. When it is time for a replacement, AJC manufactures direct OEM fit batteries for mobility scooters and power wheelchairs, shipped charged and ready to install.
